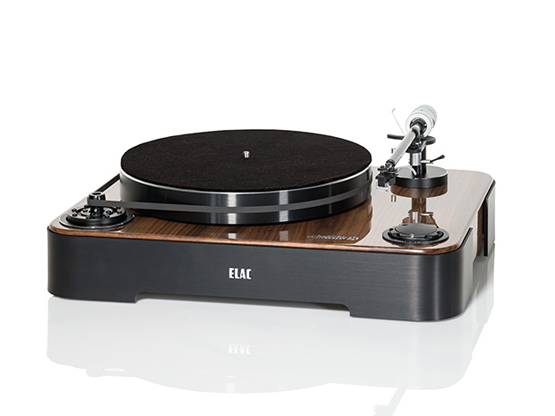

意力音箱 MRC901唱盘机
l 产品描述
An ELAC icon reborn.
The ELAC Miracord 90 Anniversary draws on this legacy and meets the highest standards in terms of sound quality, workmanship and mechanical precision. Designed to deliver the same exceptional listening experience as our loudspeakers, it is a carefully thought-out and systematically executed concept that combines superlative engineering, exquisite build quality and premium materials.
l 性能参数
Cartridge: Custom Moving Magnet system
Frequency range: 20 Hz – 25 kHz
Tracking force: 14 ± 4 mN ≙ 1.4 ± 0.4 g
DC resistance: 800 Ω ± 20%
Coil impendence: 3.2 kΩ ± 20% at 1 kHz
Recommended load: 47 kΩ
Output voltage: 2.2 – 4.9 mV
Channel separation: > 25 dB
Peak Wow/Flutter: 0.05 % / 0.05 %
Rumble (silent grove, DIN B wtd): -68.0 dB
Rumble (through bearing, DIN B wtd): -68.5 dB
Hum & noise (unwtd. rel. to 5 cm / sec):-53.3 dB
Selectable speeds: 33 and 45 rpm
Pitch: ± 5%
Outputs: 2 gold-plated Neutrik RCA connectors, gold-plated ground connector
Power supply: 18 V, 18 W Lumberg connector
Finishes: Black high gloss, white high gloss, oiled walnut
Height: 6.7 in / 170 mm
Width: 18.5 in / 470 mm
Depth: 14.2 in / 360 mm
Weight: 37.7 lb / 17.1 kg
